Strapping Machine Standard Model

Product Description

Economical choice for limited strapping usage, bottom seal semi automatic strapping machines now offers you a simple option to apply packaging load securement with low maintenance costs and ease of operation, designed for all general industrial applications. This close-type frame with innovative clutch cams transmission can help you pack/secure your packages firmly and properly.

Using polypropylene strap, this banding equipment which owns its aesthetic design and easy-to-operation characteristic is suitable for offices and shops. Manufactured in Taiwan, this semi-auto strapping machines provides you the best packaging experience.

  • Reliable PCB and control components.
  • Mechanical tension control.
  • Motor shut off for energy saving.
  • Easy to operate, less maintenance.
  • Hinged table top.
  • Closed cabinet.

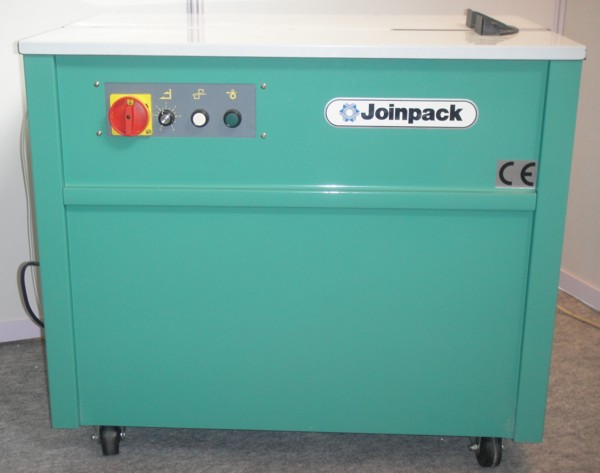

Semi Auto Strapping Machine - Standard Model
 Cycle Time 2.5sec/strap
 Tension Range 15~45 kgs
 Strap Width 6, 9, 12, 15.5mm adjustable
 Sealing Method Heating element
 Reel Inside Diameter 200, 230, 280mm specified
 Power Supply 100/110/220/230/240V, 50/60Hz, 1PH
 Table Height 780mm
 Power Consumption 0.5 KW
 Layout Dimension L902 x D575 x H780 mm
 Machine Weight 90 kgs
  • Stainless steel #304 housing(ES-103M)
  • Soft tension system.(7~35kgs)
