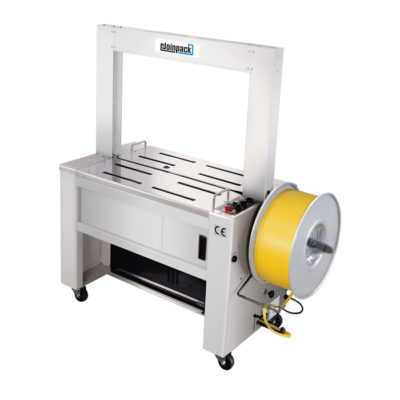

Stainless Steel Housing Automatic Strapping Machine A-93M

Product Description

For meat / marine packaging application. Various arch size combination and workability of different strap widths between 9 ~ 15 mm.
Tension range between 15-70 KGs. Available to equip with various unique options to perform advanced functions.


  • Hinged table top
  • Proximity cam switch
  • Instant heating system
  • Modular arch component
  • Weld cooling time adjustable
  • Available for both PP& PET strap
  • Digital regulator in PCB with LED show I/O status


  • Carbon strrl housing : A-93
Stainless Steel Housing Automatic Strapping Machine A-93M
Speed (straps / min) 24
Strap Width (mm) 9,12,15 specified
Tension 15~70kgs
Standard Arch (W x H mm) 850 x 600
Motor AC
Sealing Method Heating element
Table Height (mm) 805
Power Supply 110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V,50/60Hz, 3PH
Power Consumption (kw) 1.0
Layout Dimension (L x W x Hmm) (50%,100%,150%,200%) 1440 x 600 x 1530 (50%,100%,150%,200%)
*Specification subject to change without notice
