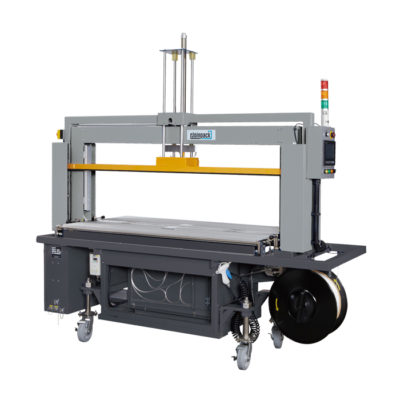

Corrugated Bundler A-88C

Product Description

High performance automatic bundler is specially designed for corrugated industry. It can work with strap width 5,6,9 mm and standard arch size is W 1650 x H 500 mm; W 1250/1450 x H 500 mm as optional per request. Easy operation as OFF-LINE or integrate with existing IN-LINE conveyor system. Joinpack 3-sides squaring machine CS1 could be integrated in front of it and complete your production-line ideally.

Features
  • Mitsubishi PLC
  • Safety interlock
  • Looping ejector
  • One piece tracking system
  • Double bar with rubber press
  • Smooth & high speed feeding
  • Waist auto loading system
  • Capable to run narrow & light strap
  • Wide range table height adjustment
  • Dispenser swing 90 degree for easy loading
  • HMI touch screen control panel, user friendly
  • High speed servo motor direct driving system
  • Heavy duty knurled roller conveyor, speed adjustable
Options
  • Arch size: 1450(W) x 500(H)mm & 1250(W) x 500(H)mm
Corrugated Bundler A-88C
Specification
Speed (straps / min) 33
Strap Width (mm) 5,6,9 specified
Tension Range for 5,6mm 2~30kgs
Tension Range for 9mm 50kgs
Standard Arch (W x H mm) 1650 x 500
Motor Servo
Sealing Method Heating element
Table Height (mm) 693~1420
Power Supply 100/110/200/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V, 50/60Hz, 3PH
Power Consumption (kw) 1.9
Layout Dimension (L x W x Hmm) (50%,100%,150%,200%) 2342 x 790 x 2049~2770 (50%,100%,150%,200%)
*Specification subject to change without notice
