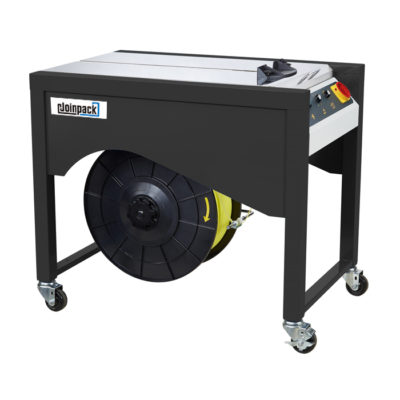

Advanced function with ergonomic slantwise control panel S-666

Product Description

Elegant shape with special side lift table top and ergonomic slantwise control panel. DC motors direct driven create silent, fast speed and wide tension range strapping. Heating & Cooling time are both adjustable to ensure sealing performance under different tension situations.

Features
  • Side lift table
  • Reliable tension system :
  • Big main roller driven by DC Motor
  • Tension range from 5 to 40 kgs.
  • Electronic outside tension control
  • Easy for Cooling Time Adjustment
  • Easy for Heater Temperature Adjustment
  • Easy to access track guide and main roller
  • Various strap thickness and width workable
  • Width from 5 mm, thickness from 0.4 mm.
  • Less mechanism parts, easy in maintenance
  • Ergonomics right side slantwise panel control
  • Efficient and silent: Faster strapping cycle with less noise
Advanced function with ergonomic slantwise control panel S 666
Specification
Cycle Time 2 sec./strap
Tension Range 5~40kgs
Strap Width 5,6,9,12,15.5mm adjustable
Sealing Method Heating element
Reel Inside Diameter 200,230,280mm specified
Power Supply 110/220/230/240V 50/60HZ, 1PH
Table Height 777mm adjustable
Power Consumption 0.3kw
Machine Dimension (L x W x H mm) L900 x W583 x H777
Strap Thickness 0.4~07mm
Machine Weight (50%,100%,150%,200%) 61kgs (50%,100%,150%,200%)
*Specification subject to change without notice
