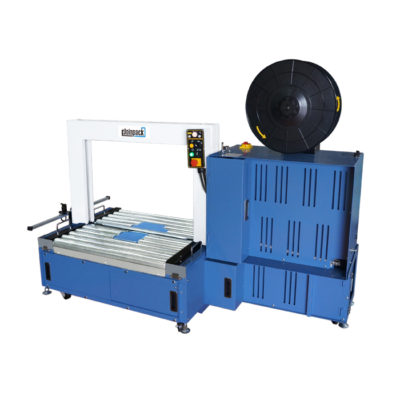

Fully Automatic Roller Driven With Low Table A-93LAR

Product Description

Ideal for heavy, bulky package. Lower table height allows itself to integrate with low height conveyers. Ideal designed to integrate by IN-LINE with other machines for general industry. Various arch size combination and workability of different strap widths between 9 ~ 15 mm can serve all kinds of packages. Tension range between 15~70 KGs and cycles speed 24 straps. Available to equip with various unique options to perform advanced functions.

  • For PP & PET straps
  • Proximity cam switch
  • Instant heating system
  • Heavy duty steel rollers
  • Weld cooling time adjustable
  • Hinged power roller driven table top
  • Up-stream and down-stream interlock
  • Heating temperature from 230℃~460℃
  • Top press
  • Looping ejector
  • Auto-loading system
  • Stracker light with buzzer
  • Coil end strap ejecting out
  • Stainless steel housing (SUS#304)
Fully Automatic Roller Driven With Low Table A-93LAR
Speed (straps / min) 24
Strap Width (mm) 9,12,15 specified
Tension Range 15~70kgs
Roller Speed 10~40 adjustable
Standard Arch (W x H mm) 850 x 600
Motor AC
Sealing Method Heating element
Table Height (mm) 440
Power Supply 110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V,50/60Hz, 3PH
Power Consumption (kw) 1.0
Layout Dimension (L x W x Hmm) (50%,100%,150%,200%) 1925 x 705 x 1480 (50%,100%,150%,200%)
*Specification subject to change without notice
