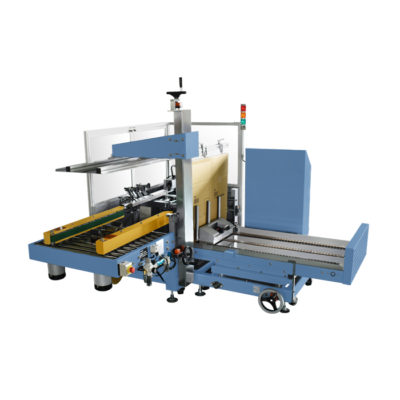

Box Opening, Folding & Bottom Sealing JP-505V

Product Description

Automatically box suction, forming, flaps folding, bottom tape sealing all in one. Manually adjust width & height to cope with variety of boxes. Reliable taping heads apply tapes smoothly. It can integrate with auto packaging system.

  • Suction, form, flaps folded & bottom tape seal
  • For uniform box
  • Side belt driven
  • Sturdy mast & frame
  • PLC control, touch panel
  • Taping heads seal box smooth & accurate
  • Detect for tape cutting failure, low & no tape roll
  • Easy to change boxes by handle with counter display
  • Safety fence
Box Opening, Folding & Bottom Sealing JP-505V
Sealing Size (L x W x Hmm) Max. 500 x 400 x 550 Min. 250 x 170 x 90
Tape Width 2” or 3” (specified)
Table Height (mm) 620
Belt Speed 20 M/per min. at 60Hz
Air Consumption 6 kgs/cm2
Box in Magazine 90~100 boxes depend on box thickness
Capacity 8~12 boxes per min.
Power Supply 110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V, 50/60Hz, 3PH
Layout Dimension (L x W x Hmm) (50%,100%,150%,200%) 2310 x 2400 x 1800 (50%,100%,150%,200%)
*Specification subject to change without notice
