Roller Driven Tabletop With Servo Motor A-88NAR

Product Description

A-88NAR is designed for various in-line applications. A-88NAR can work with different strap widths, provide wide tension range as well as rapid strapping speed with servo motor driven. Diversity of assist functions is all as standard equipped.

Features
  • Roller driven
  • Looping ejector
  • Short feeding sensor
  • Coil end eject system
  • Waist auto loading system
  • Conveyor speed adjustable
  • Upstream and downstream interlock
  • Run on 5,6,9,12,15 mm strap (specified)
  • PLC control with HMI touch screen panel
Options
  • Stainless steel housing
  • Various arch sizes available

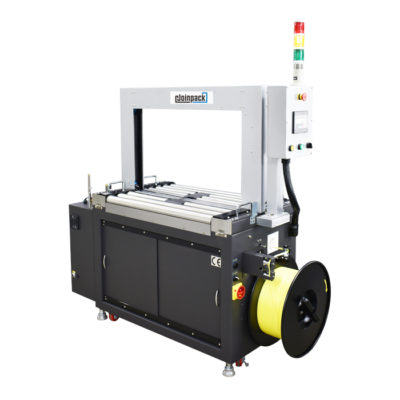

Roller Driven Tabletop With AC Motor A-85NAR
Specification
Speed (straps / min) 60 up
Strap Width (mm) 5,6,9,12,15 specified
Tension Range for 5,6mm 3~30kgs
Tension Range for 9,12,15mm 5~70kgs
Standard Arch (W x H mm) 850 x 500
Motor Servo
Sealing Method Heating element
Table Height (mm) 805
Power Supply 110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V,50/60Hz, 3PH
Power Consumption (kw) 1.2
Layout Dimension (L x W x Hmm) (50%,100%,150%,200%) 1565 x 580 x 1430 (50%,100%,150%,200%)
*Specification subject to change without notice
