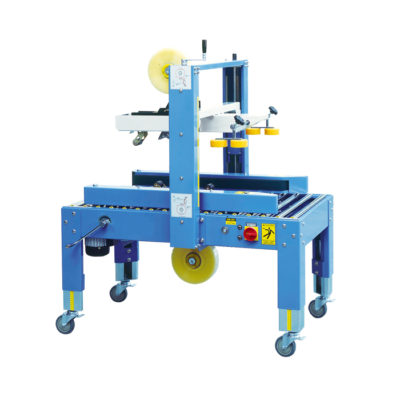

Tape Sealing, Side Belt Driven JP-501

Product Description

Manually adjust width & height by two handles to cope with variety of boxes. Reliable taping heads apply tapes smoothly. Side belt driven is suitable for narrow box.

Features
  • For uniform box
  • Side belt driven
  • Sturdy mast & frame
  • Taping heads seal box smooth & accurate
  • Dual side wheels help box close while taping
  • Table height adjustable from 570~770 mm
Options
  • Extension roller table
  • Stainless steel housing #304
  • Width & height increase in size
  • For heavy load, choose upper and side belt driven, JP-501T
Tape Sealing, Side Belt Driven JP-501
Specification
Sealing Size (L x W x Hmm) Max. ∞ x 500 x 500 Min. 150 x 110 x 110 for 2”tape 150 x 135 x 110 for 3”tape
Tape Width 2” or 3” (specified)
Table Height (mm) 570~700
Belt Speed 20 M/per min. at 60Hz
Power Supply 110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V, 50/60Hz, 3PH
Layout Dimension (L x W x Hmm) (50%,100%,150%,200%) 1250 x 960 x 1420 (50%,100%,150%,200%)
*Specification subject to change without notice
