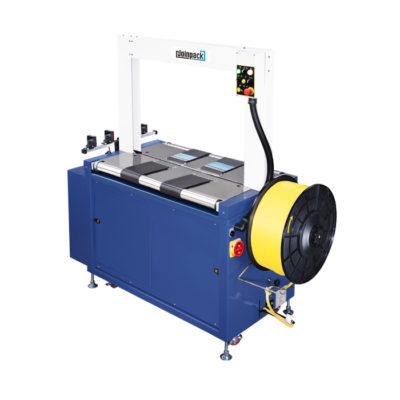

IN-LINE Fully Automatic Belt Driven A-93AB

Product Description

Ideal designed to integrate by IN-LINE with other machines for general industry. Various arch size combination and workability of different strap widths between 9 ~ 15 mm can serve all kinds of packages. Tension range between 15~70 KGs and cycles speed 24 straps. Available to equip with various unique options to perform advanced functions.

  • Proximity cam switch
  • Instant heating system
  • Hinged belt driven table top
  • Weld cooling time adjustable
  • Digital PCB with LED which easy to regulate
  • Looping ejector
  • Auto loading system
  • Stack lights with buzzer
  • Coil end strap ejecting out
IN-LINE Fully Automatic Belt Driven A-93AB
Speed (straps / min) 24
Strap Width (mm) 9,12,15 specified
Tension Range 15~70kgs
Belt Speed (m/min) 10~40 adjustable
Standard Arch (W x H mm) 850 x 600
Motor AC
Sealing Method Heating element
Table Height (mm) 805
Power Supply 110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V, 50/60Hz, 3PH
Power Consumption (kw) 1.0
Layout Dimension (L x W x Hmm) (50%,100%,150%,200%) 1440 x 600 x 1530 (50%,100%,150%,200%)
*Specification subject to change without notice
