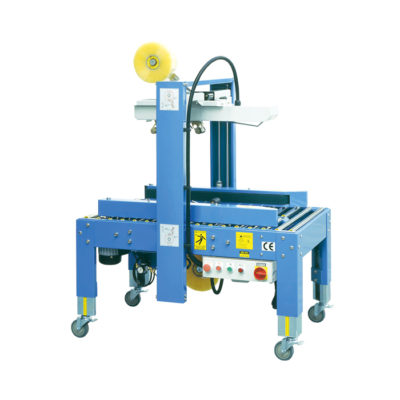

Tape Sealing, Side Belt Driven JP-501A
Product Description
Auto adjust width & height to cope with variety of boxes. Reliable taping heads apply tapes smoothly.
Features
- For random box
- Side belt driven
- Sturdy mast & frame
- Taping heads seal box smooth & accurate
- Table height adjustable from 570~770 mm
Options
- Extension roller table
- Stainless steel housing #304
- Width & height increase in size
- For heavy load, choose upper and side belt driven, JP-501AT
Specification
| Sealing Size (L x W x Hmm) | Max. ∞ x 500 x 500 Min. 150 x 130 x 120 for 2”tape 150 x 155 x 120 for 3”tape |
| Tape Width | 2” or 3” (specified) |
| Table Height (mm) | 570~700 |
| Belt Speed | 20 M/per min. at 60Hz |
| Air Consumption | 6 kgs/cm2 |
| Power Supply | 110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V, 50/60Hz, 3PH |
| Layout Dimension (L x W x Hmm) (50%,100%,150%,200%) | 1250 x 910 x 1315 (50%,100%,150%,200%) |
