Servo Motor Roller Driven Tabletop With Top Press A-88NARP

Product Description

A-88NARP is designed for various in-line applications. Top press helps compressing the bundle during strapping to get better tension. A-88NARP can work with different strap widths, provide wide tension range as well as rapid strapping speed with servo motor driven.

  • Top press
  • Roller driven
  • Looping ejector
  • Short feeding sensor
  • Coil end eject system
  • Waist auto loading system
  • Conveyor speed adjustable
  • Upstream and downstream interlock
  • Run on 5,6,9,12,15 mm strap (specified)
  • PLC control with HMI touch screen panel

  • Various arch sizes
  • Stainless steel housing

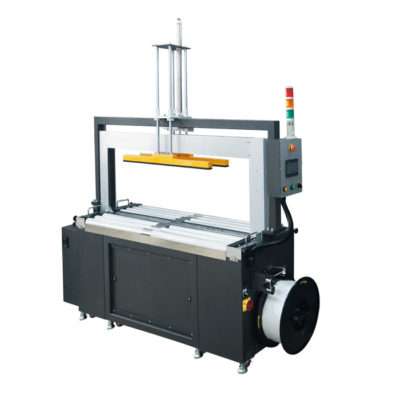

Roller Driven Tabletop With Top Press A-85NARP
Speed (straps / min) 60 up
Strap Width (mm) 5,6,9,12,15 specified
Tension Range for 5,6mm 3~30kgs
Tension Range for 9,12,15mm 5~70kgs
Standard Arch (W x H mm) 850 x 500
Motor Servo
Sealing Method Heating element
Table Height (mm) 805
Power Supply 110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V,50/60Hz, 3PH
Power Consumption (kw) 1.2
Layout Dimension (L x W x Hmm) (50%,100%,150%,200%) 1230 x 580 x 1430 (50%,100%,150%,200%)
*Specification subject to change without notice
