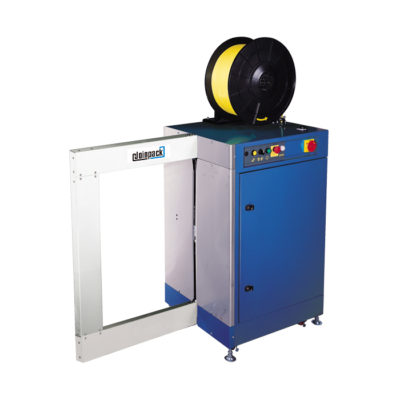

Side Seal Automatic Strapping Machine A-93Y

Product Description

Low-cost automation by integrate with conveyers. Ideal for general industry. Ideal designed for general industry and to be integrated by IN-LINE with other machines for general industry. Various arch size combination and workability of different strap widths between 9 ~ 15 mm can serve all kinds of packages. Tension range between 15~70 KGs and cycles speed 24 straps. Available to equip with various unique options to perform advanced functions.

  • 8 digit counter
  • Proximity cam switch
  • Instant heating system
  • Weld cooling time adjustable
  • Digital regulator in PCB which LED shown I/O status
  • Top press
  • Looping ejector
  • Auto loading system
  • Stainless steel housing
  • Stacker light with buzzer
  • Coil end strap ejecting out
  • Up-stream and down-stream interlock
  • Strapping sensor(photocell) with bracket
Side Seal Automatic Strapping Machine A-93Y
Speed (straps / min) 24
Strap Width (mm) 9,12,15 specified
Tension Range 15~70kgs
Standard Arch (W x H mm) 600 x 850
Motor AC
Sealing Method Heating element
Power Supply 110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V, 50/60Hz, 3PH
Power Consumption (kw) 1.0
Layout Dimension (L x W x Hmm) (50%,100%,150%,200%) 1425 x 600 x 850 (50%,100%,150%,200%)
*Specification subject to change without notice
