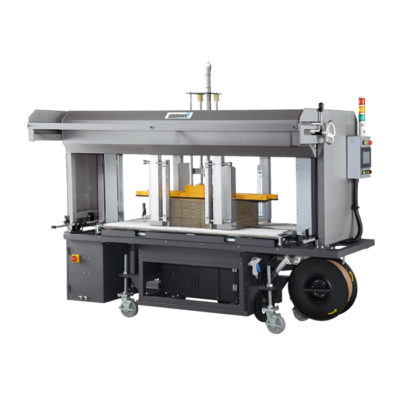

Corrugated 3-sided Bundle Squaring and Strapping System A-88CS

Product Description

A-88CS is built with A-88C corrugated strapper combined with the 3-sided squaring station. Integrating with square machine with higher strapping speed, less maintenance and wide productivity with the cost-effective solution, A-88CS is designed specifically to the corrugated industry.

The electrically backstop and side squaring assure the optimized accessibility and service-friendliness, also provide bundle squaring capability.
With the integration of in-line strapping and squaring system, the A-88CS can offer the precise bundle control, neater and more stable pallet loads.

  • Mitsubishi PLC
  • Looping ejector
  • Multiple strap function
  • Easy loadingdispenser
  • Variable conveyor speed
  • Wide range table height adjustment
  • Waist auto loading system
  • Small bundle transport system is a standard
  • HMI touch screen control panel, user friendly
  • High speed servo motor direct driving system
  • Full opening hinged conveyors for easy sealer access
  • Heavy duty knurled roller conveyor, speed adjustable
  • One piece tracking system for smooth, reliable high speed feeding
  • Siemens PLC
  • Arch Size: 1450W x500H(mm)& 1250Wx500H(mm)
Corrugated 3-sided Bundle Squaring and Strapping System A-88CS
Speed (straps / min) 33
Strap Width (mm) 5,6,9specified
Tension Range 2~55kgs
Conveyor Speed(m/min) 9~50kgs
Standard Arch (W x H mm) 1650 x 500
Motor Servo
Sealing Method Heating element
Table Height (mm) 693~1420
Power Supply 100/110/200/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V,50/60Hz, 3PH
Power Consumption (kw) 21
Layout Dimension (L x W x Hmm) (50%,100%,150%,200%) 2435 x 1170 x 2049~2770 (50%,100%,150%,200%)
*Specification subject to change without notice
