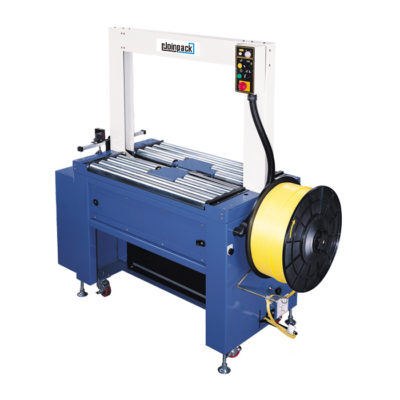

Fully Automatic Strapper with Roller Driven Table A-93AR

Product Description

Ideal designed to integrate by IN-LINE with other machines for general industry. Various arch size combination and workability of different strap widths between 9 ~ 15 mm can serve all kinds of packages. Tension range between 15~70 KGs and cycles speed 24 straps. Available to equip with various unique options to perform advanced functions

  • Proximity cam switch
  • Instant heating system
  • Stainless-clad steel roller
  • Weld cooling time adjustable
  • Hinged power roller driven table top
  • Up-stream and down-stream interlock
  • Heating temperature from 230℃~460℃ for PP & PET straps
  • Looping ejector
  • Top press function
  • Auto loading system
  • Stack light with buzzer
  • Coil end strap ejecting out
  • Stainless steel housing. (SUS#304)
Fully Automatic Strapper with Roller Driven Table A-93AR
Speed (straps / min) 24
Strap Width (mm) 9,12,15 specified
Tension Range 15~70kgs
Roller Speed (m/min) 10~40 adjustable
Standard Arch (W x H mm) 850 x 600
Motor AC
Sealing Method Heating element
Table Height (mm) 805
Power Supply 110/220/230/240V, 50/60Hz,1PH 220/230/380/415/400V, 50/60Hz, 3PH
Power Consumption (kw) 1.0
Layout Dimension (L x W x Hmm) (50%,100%,150%,200%) 1440 x 600 x 1530 (50%,100%,150%,200%)
*Specification subject to change without notice
