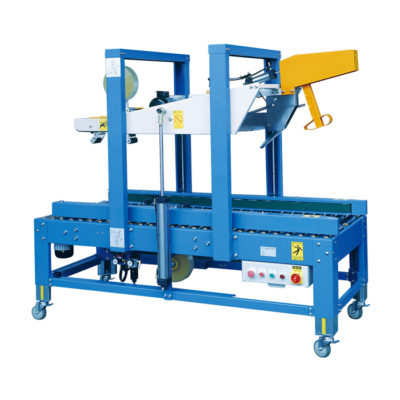

Flaps Folding & Tape Sealing JP-503

Product Description

Auto top flaps folding makes box sealing more convenient & fast. Manually adjust width & height by two handles to cope with variety of boxes. Reliable taping heads apply tapes smoothly. It can integrate with auto packaging system.

Features
  • Top flaps folding device
  • For uniform box
  • Side belt driven
  • Sturdy mast & frame
  • Taping heads seal box smooth & accurate
  • Dual side wheels help box close while taping
  • Table height adjustable from 570~770 mm
Options
  • Safety fence
  • Stainless steel housing #304
  • Detect for tape cutting failure, low & no tape roll
  • Heavy duty, choose two columns type, JP-503T
Flaps Folding & Tape Sealing JP-503
Specification
Sealing Size (L x W x Hmm) Max. 550 x 500 x 500 Min. 200 x 135 x 120 for 2”tape 200 x 150 x 120 for 3”tape
Tape Width 2” or 3” (specified)
Table Height (mm) 570~700
Belt Speed 20 M/per min. at 60Hz
Air Consumption 6 kgs/cm2
Power Supply 110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V, 50/60Hz, 3PH
Layout Dimension (L x W x Hmm) (50%,100%,150%,200%) 1900 x 960 x 1600 (50%,100%,150%,200%)
*Specification subject to change without notice
