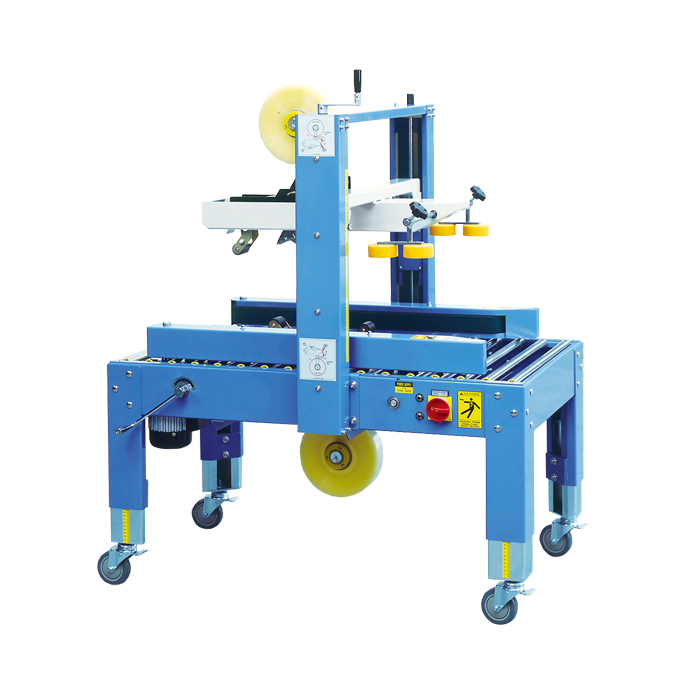

Tape Sealing, Side Belt Driven JP-501

In Stock

Manually adjust width & height by two handles to cope with variety of boxes. Reliable taping heads apply tapes smoothly. Side belt driven is suitable for narrow box.

Ask about product

Description

Overview

Manually adjust width & height by two handles to cope with variety of boxes. Reliable taping heads apply tapes smoothly. Side belt driven is suitable for narrow box.

Features

For uniform box
Side belt driven
Sturdy mast & frame
Taping heads seal box smooth & accurate
Dual side wheels help box close while taping
Table height adjustable from 570~770 mm

Specification

Sealing Size (L x W x Hmm)	Max. ∞ x 500 x 500 Min. 150 x 110 x 110 for 2”tape 150 x 135 x 110 for 3”tape
Tape Width	2” or 3” (specified)
Table Height (mm)	570~700
Belt Speed	20 M/per min. at 60Hz
Power Supply	110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V, 50/60Hz, 3PH
Layout Dimension (L x W x Hmm) (50%,100%,150%,200%)	1250 x 960 x 1420 (50%,100%,150%,200%)

*Specification subject to change without notice

Options

Extension roller table
Stainless steel housing #304
Width & height increase in size
For heavy load, choose upper and side belt driven, JP-501T
