Automatic Carton Taping Machine

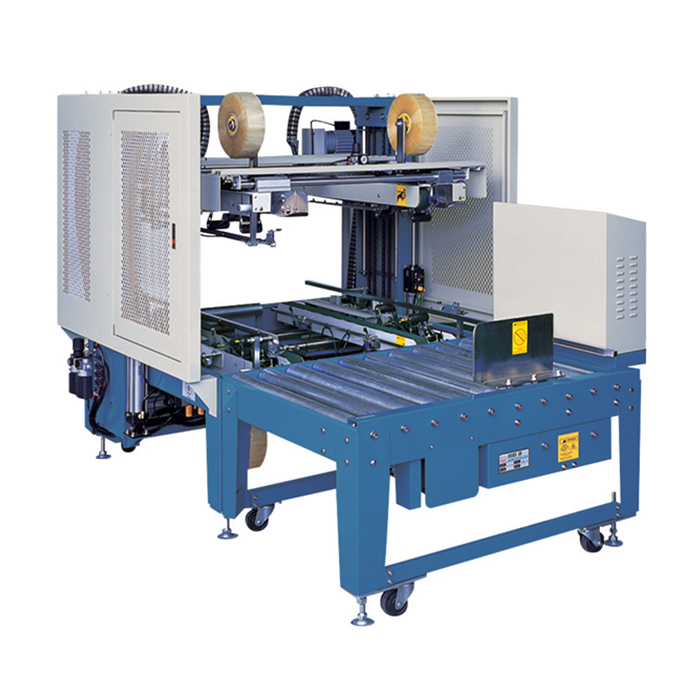

Edge Sealing, Top & Bottom Belt Driven JP-504A

Four corner edges sealing makes box more secure. Auto adjust width & height to cope with variety of boxes. Reliable taping heads apply & wipe tapes smoothly. It can integrate with JP-501A or JP-503A for H type sealing.

Overview

Four corner edges sealing makes box more secure. Auto adjust width & height to cope with variety of boxes. Reliable taping heads apply & wipe tapes smoothly. It can integrate with JP-501A or JP-503A for H type sealing.

Features

  • Four edges (top & bottom) sealing
  • Transfer rollers with pusher
  • For random box
  • Top & bottom belt driven
  • Sturdy mast & frame
  • Taping heads seal box smooth & accurate
  • Table height adjustable from 570~770 mm

Details

Sealing Size (L x W x Hmm) Max. 650 x 600 x 600 Min. 300 x 250 x 225
Tape Width 2” or 3” (specified)
Table Height (mm) 570~700
Belt Speed 20 M/per min. at 60Hz
Air Consumption 6 kgs/cm2
Power Supply 110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V, 50/60Hz, 3PH
Layout Dimension (L x W x Hmm) (50%,100%,150%,200%) 2100 x 1470 x 1500 (50%,100%,150%,200%)

*Specification subject to change without notice

Options
  • Safety fence
