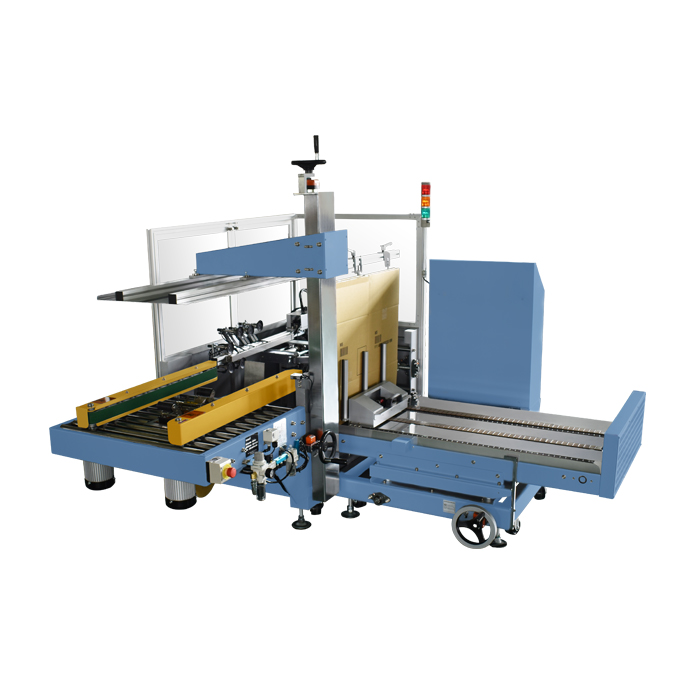

Box Opening, Folding & Bottom Sealing JP-505V
Box Opening, Folding & Bottom Sealing JP-505V

Box Opening, Folding & Bottom Sealing JP-505V

Availability: In Stock

Automatically box suction, forming, flaps folding, bottom tape sealing all in one. Manually adjust width & height to cope with variety of boxes. Reliable taping heads apply tapes smoothly. It can integrate with auto packaging system.

Ask about product




    Category:
    Description

    Description

    Overview

    Automatically box suction, forming, flaps folding, bottom tape sealing all in one. Manually adjust width & height to cope with variety of boxes. Reliable taping heads apply tapes smoothly. It can integrate with auto packaging system.

    Features

    • Suction, form, flaps folded & bottom tape seal
    • For uniform box
    • Side belt driven
    • Sturdy mast & frame
    • PLC control, touch panel
    • Taping heads seal box smooth & accurate
    • Detect for tape cutting failure, low & no tape roll
    • Easy to change boxes by handle with counter display
    Specification

    Specification

    Sealing Size (L x W x Hmm) Max. 500 x 400 x 550 Min. 250 x 170 x 90
    Tape Width 2” or 3” (specified)
    Table Height (mm) 620
    Belt Speed 20 M/per min. at 60Hz
    Air Consumption 6 kgs/cm2
    Box in Magazine 90~100 boxes depend on box thickness
    Capacity 8~12 boxes per min.
    Power Supply 110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V, 50/60Hz, 3PH
    Layout Dimension (L x W x Hmm) (50%,100%,150%,200%) 2310 x 2400 x 1800 (50%,100%,150%,200%)

    *Specification subject to change without notice

    Options
    • Safety fence
