Carton Wrapping Machine
Product Description

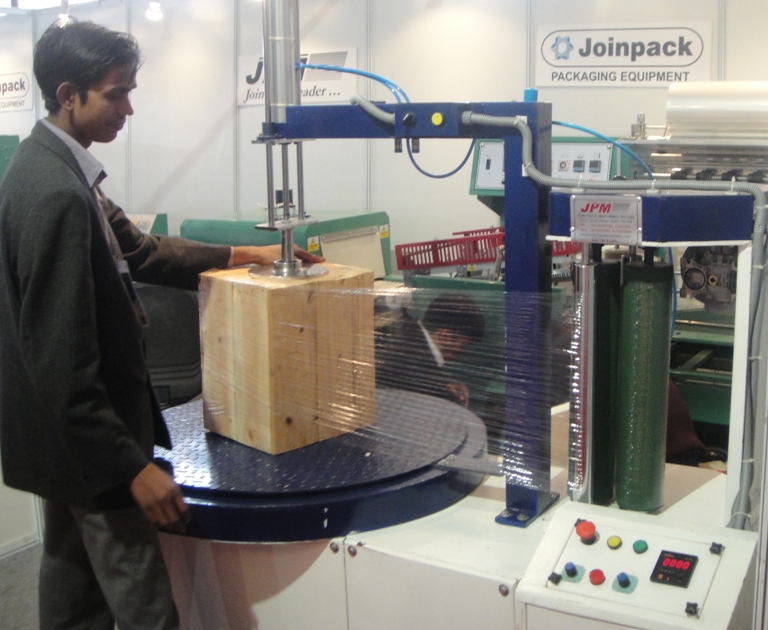

Carton Wrapping Machine
We are among the reputed organizations, engaged in manufacturing and supplying top-class Carton Wrapping Machine. Offered machines are used for wrapping carton boxes in various packaging industries. These machines are widely demanded by our customers for their high performance and non-corrosive nature. Our experienced team members manufacture these products in our well-equipped infrastructure facility by making use of best quality steel and components. Moreover, we deliver the Carton Wrapping Machine under a specific time-frame at market leading prices.
Key Features of Carton Wrapping Machine:
- Pilferage Proof
- Adopts PLC and human machine interface control system
- Adjustable settings for film conveying
- Automatic stop when machine is overload
- Protection from Dust / Dirt, Protection from Moisture / Water
- Provides Extra Strength to the Carton
- Vis-a-Vis any Shrink Machine, this System requires just 20% Space
- Vis-a-Vis any Shrink Machine, this System requires just 10% Electricity Load
- Any Wriing / Sticker on the outer Carton Surface remains completely visible till the destination
Key Specification:
| Product to be Packed | Corrugated Cartons / Tin Cans / Multiple Books etc |
| Product Dimensions | 700mm x 700mm x 600mm (L x W x H) |
| Turntable Diameter. | 1500mm (1800mm) |
| Max. Pallet Weight | Upto 100 Kg. |
| Capacity | Upto 150 Cartons / Hour |
| Direction of Rotation | Clockwise (When viewed from top) |
| Power | 1 HP 3 Phase 415 V 50 Hz AC. |
| Turn-Table | MS Fabricated 900mm Diameter / Variable Speed |
| Motors | AC Motors with Gear Box |
| Spool Carriage. | 4 FRD/PE Stretch Carriage |
| Pre-Stretch Range | Upto 300% |
| Stretching System | Bi-Directional Wrapping |
| Film Usage | LLDPE Stretch-Wrap Film |
| Film Width | 250-500mm |
| Film Thickness | 12-40microns |
| Film Core Inner Dia. | 76mm |
