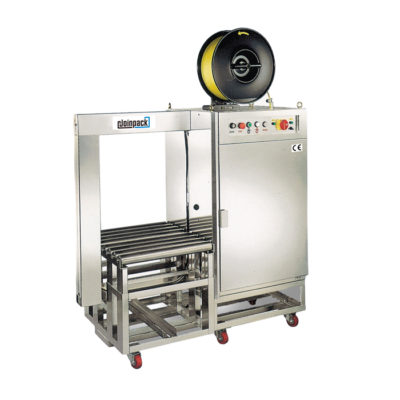

Stainless Steel Side Seal Strapping With Table A-93YMT

Product Description

Ideal design for food packages such like meat or marines. Equipped with roller table and frame made by stainless steel. Various arch size combination and workability of different strap widths between 9 ~ 15 mm. Tension range between 15-70 KGs. Available to equip with various unique options to perform advanced functions.

Features
  • 8 digit counter
  • Proximity cam switch
  • Instant heating system
  • Weld cooling time adjustable
  • Digital regulator in PCB which LED shows I/O status
Options
  • Press unit
  • Looping ejector
  • Auto loading system
  • Stacker light with buzzer
  • Coil end strap ejecting out
  • Up-stream and down-stream interlock
  • Strapping sensor(photocell) with bracket
Stainless Steel Side Seal Strapping With Table A-93YMT
Specification
Speed (straps / min)24
Strap Width (mm)9,12,15 specified
Tension Range15~70kgs
Standard Arch (W x H mm)600 x 650
MotorAC
Sealing MethodHeating element
Table Height (mm)740mm from floor lever
Power Supply110/220/230/240V, 50/60Hz, 1PH
220/230/380/415/440V,50/60Hz, 3PH
Power Consumption (kw)1.0
Layout Dimension
(L x W x Hmm)
(50%,100%,150%,200%)		1425 x 640 x 1943
(50%,100%,150%,200%)

*Specification subject to change without notice
