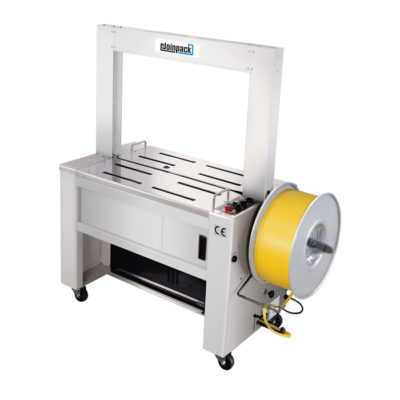

Stainless Steel Housing Automatic Strapping Machine A-93M
Product Description
For meat / marine packaging application. Various arch size combination and workability of different strap widths between 9 ~ 15 mm.
Tension range between 15-70 KGs. Available to equip with various unique options to perform advanced functions.
Features
- Hinged table top
- Proximity cam switch
- Instant heating system
- Modular arch component
- Weld cooling time adjustable
- Available for both PP& PET strap
- Digital regulator in PCB with LED show I/O status
Options
- Carbon strrl housing : A-93
Specification
| Speed (straps / min) | 24 |
| Strap Width (mm) | 9,12,15 specified |
| Tension | 15~70kgs |
| Standard Arch (W x H mm) | 850 x 600 |
| Motor | AC |
| Sealing Method | Heating element |
| Table Height (mm) | 805 |
| Power Supply | 110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V,50/60Hz, 3PH |
| Power Consumption (kw) | 1.0 |
| Layout Dimension (L x W x Hmm) (50%,100%,150%,200%) | 1440 x 600 x 1530 (50%,100%,150%,200%) |
