Specification
| Speed (straps / min) |
60 up |
| Strap Width (mm) |
5,6,9,12,15 specified |
| Tension Range for 5,6mm |
3~30kgs |
| Tension Range for 9,12,15mm |
5~70kgs |
| Standard Arch (W x H mm) |
650 x 500 |
| Motor |
Servo |
| Sealing Method |
Heating element |
| Table Height (mm) |
805 |
| Power Supply |
110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V, 50/60Hz, 3PH |
| Power Consumption (kw) |
1.2 |
| Layout Dimension (L x W x Hmm) (50%,100%,150%,200%) |
1230 x 580 x 1430 (50%,100%,150%,200%) |
*Specification subject to change without notice
Options

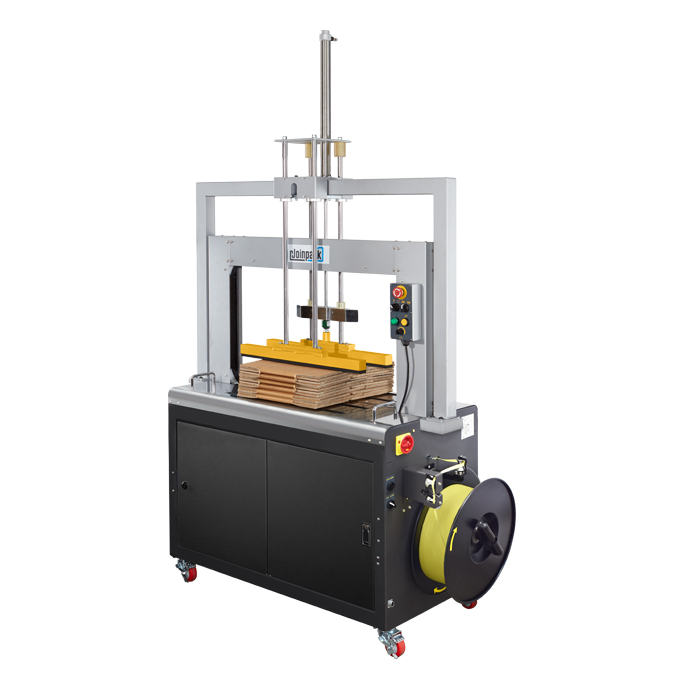

- Top press – P
- Various arch sizes
- Stainless steel housing (A-85M)
