Roller Driven Tabletop With Servo Motor A-88NAR

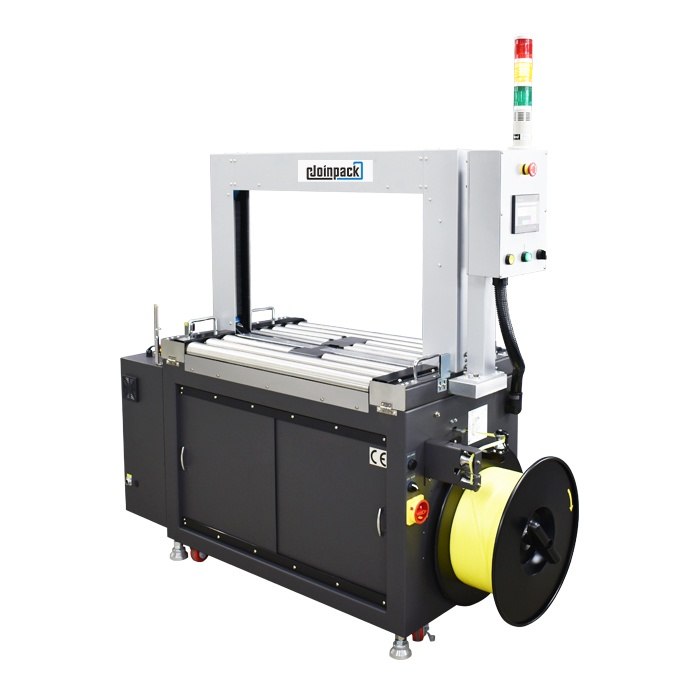

Roller Driven Tabletop With AC Motor A-85NAR

Roller Driven Tabletop With Servo Motor A-88NAR

Availability: In Stock

A-88NAR is designed for various in-line applications. A-88NAR can work with different strap widths, provide wide tension range as well as rapid strapping speed with servo motor driven. Diversity of assist functions is all as standard equipped.

Ask about product




    Categories: ,
    Description

    Description

    Overview

    A-88NAR is designed for various in-line applications. A-88NAR can work with different strap widths, provide wide tension range as well as rapid strapping speed with servo motor driven. Diversity of assist functions is all as standard equipped.

    Features

    • Roller driven
    • Looping ejector
    • Short feeding sensor
    • Coil end eject system
    • Waist auto loading system
    • Conveyor speed adjustable
    • Upstream and downstream interlock
    • Run on 5,6,9,12,15 mm strap (specified)
    • PLC control with HMI touch screen panel
    Specification

    Specification

    Speed (straps / min) 60 up
    Strap Width (mm) 5,6,9,12,15 specified
    Tension Range for 5,6mm 3~30kgs
    Tension Range for 9,12,15mm 5~70kgs
    Standard Arch (W x H mm) 850 x 500
    Motor Servo
    Sealing Method Heating element
    Table Height (mm) 805
    Power Supply 110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V,50/60Hz, 3PH
    Power Consumption (kw) 1.2
    Layout Dimension (L x W x Hmm) (50%,100%,150%,200%) 1565 x 580 x 1430 (50%,100%,150%,200%)

    *Specification subject to change without notice

    Options
    • Stainless steel housing
    • Various arch sizes available
