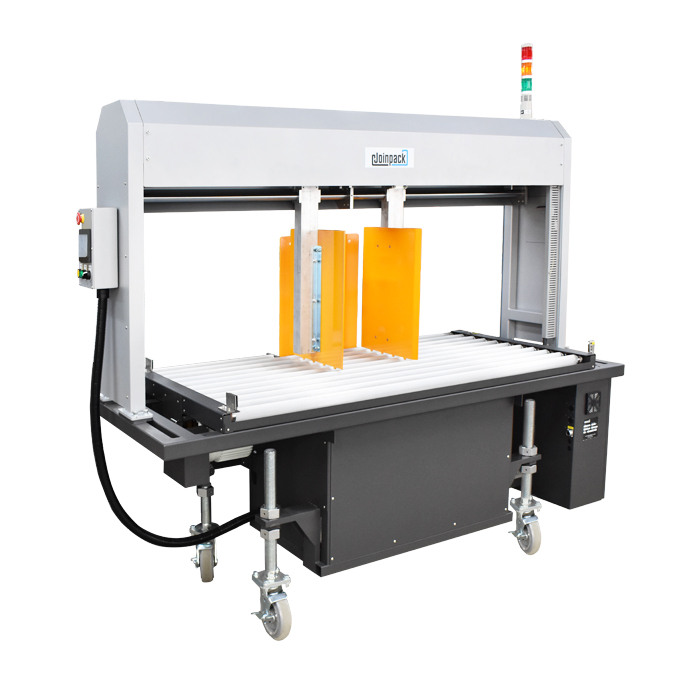

Automatic 3-Sides Squaring Machine CS1

Availability: In Stock

Automatic 3 sides squaring machine ideal for squaring the stack of corrugated cardboard before strapping. Through its bilateral paddles and front bundle stop, CS1 can definitely make your bundles more ordered. Ideal to integrate with Joinpack A-8 or A-9 series strapping machine or existing conveyor and strapping machine.

Ask about product
Description

Description

Overview

Automatic 3 sides squaring machine ideal for squaring the stack of corrugated cardboard before strapping. Through its bilateral paddles and front bundle stop, CS1 can definitely make your bundles more ordered. Ideal to integrate with Joinpack A-8 or A-9 series strapping machine or existing conveyor and strapping machine.

Features

  • Safety shields
  • Mitsubishi PLC
  • Conveyor speed adjustable
  • Heavy duty knurled roller conveyor
  • DC motor driven bilateral paddles & Pneumatic bundle stop device
Specification

Specification

Conveyor Speed (m/min) 9~50
Table Height (mm) 680~1010
Power Supply 110/220/230/240V, 50/60Hz, 1PH
220/230/380/415/440V, 50/60Hz, 3PH
Power Consumption (kw) 0.25
Layout Dimension
(L x W x Hmm)
(50%,100%,150%,200%)
800 x 1960 x 1440
(50%,100%,150%,200%)

*Specification subject to change without notice

Options
  • Combined with A8 & A9-NARP ( Roller Driven with Top Press)
