Semi Automatic Strapping Machines

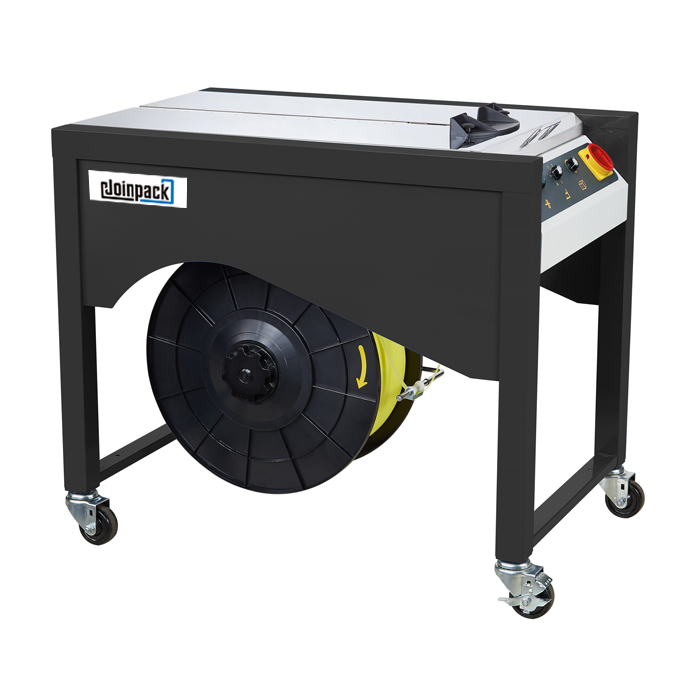

Advanced function with ergonomic slantwise control panel S-666

Elegant shape with special side lift table top and ergonomic slantwise control panel. DC motors direct driven create silent, fast speed and wide tension range strapping. Heating & Cooling time are both adjustable to ensure sealing performance under different tension situations.

Overview

Elegant shape with special side lift table top and ergonomic slantwise control panel. DC motors direct driven create silent, fast speed and wide tension range strapping. Heating & Cooling time are both adjustable to ensure sealing performance under different tension situations.

Features

  • Side lift table
  • Reliable tension system :
  • Big main roller driven by DC Motor
  • Tension range from 5 to 40 kgs.
  • Electronic outside tension control
  • Easy for Cooling Time Adjustment
  • Easy for Heater Temperature Adjustment
  • Easy to access track guide and main roller
  • Various strap thickness and width workable
  • Width from 5 mm, thickness from 0.4 mm.
  • Less mechanism parts, easy in maintenance
  • Ergonomics right side slantwise panel control
  • Efficient and silent: Faster strapping cycle with less noise

Details

Cycle Time 2 sec./strap
Tension Range 5~40kgs
Strap Width 5,6,9,12,15.5mm adjustable
Sealing Method Heating element
Reel Inside Diameter 200,230,280mm specified
Power Supply 110/220/230/240V 50/60HZ, 1PH
Table Height 777mm adjustable
Power Consumption 0.3kw
Machine Dimension (L x W x H mm) L900 x W583 x H777
Strap Thickness 0.4~07mm
Machine Weight (50%,100%,150%,200%) 61kgs (50%,100%,150%,200%)

*Specification subject to change without notice
