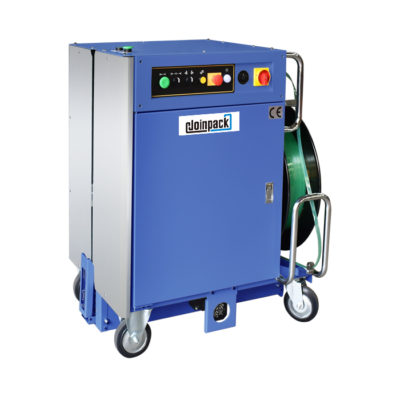

Mobile Side Seal Strapping Machine for Pallet S-72YO
Product Description
Mobility for packages on pallet, Plug in and can be workable for everywhere, movable with casters. Track capable for stretch and retraction, less working space and high efficiency.. PP and PET strap are both workable.
Features
- Proximity cam switch
- Auxiliary feeding device
- Low sealing head (550mm)
- Weld cooling time adjustable
- Mobile track for pallet strapping
- PP/PET switch: to change the setting by one switch
- Digital regulator in PCB which LED shows I/O status
Options
- Ø406 Dispense
Specification
| Strap Width (mm) | 9,12,15 specified |
| Tension Range | 15~70kgs |
| Motor | AC |
| Sealing Method | Heating element |
| Power Supply | 110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V,50/60Hz, 3PH |
| Power Consumption (kw) | 0.95 |
| Layout Dimension (L x W x Hmm) (50%,100%,150%,200%) | 1005 x 765 x 1120 (50%,100%,150%,200%) |
