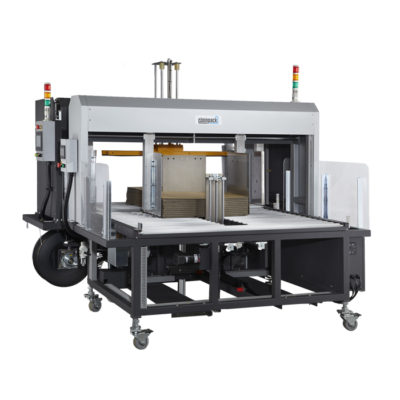

Corrugated Bundler With Squaring Machine A-88C+CS4

Product Description

High performance fully-automatic bundle integrates with 4 sides squaring machine, ideal combination system or corrugated industry. CS4 can ensure the bundle are fine aligned and well – straightened before strapping. It can work with different bundle size easily thru its memory function.

Features
  • Mitsubishi PLC
  • Safety interlock
  • Easy loading dispenser
  • Top press, adjustable stroke
  • Waist height auto strap loading system
  • Wide range and adjustable table height
  • Full open hinged table for easy maintenance
  • HMI touch screen control panel, user friendly
  • Variable programming for quick product changes
  • Heavy duty knurled roller conveyor, adjustable speed
  • High tech servo motor direct driving strapping system
  • In-line bundler integrates with 4 –sides squaring device
  • One piece tracking system for reliable and high speed feeding
  • Automatic detection for the first bundle sizes (Memory function)
Options
  • Arch size: W 1650 x H 500mm
Corrugated Bundler With Squaring Machine A-88C+CS4
Specification
Cycle Time (sec. /strap) 1.8
Table Height (mm) 760 ~1010mm
Power Supply 100/110/200/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V,50/60Hz, 3PH
Power Consumption (kw) 2.75
Layout Dimension (L x W x Hmm) (50%,100%,150%,200%) 2342 x 2129 x 2049~2770 (50%,100%,150%,200%)
*Specification subject to change without notice
