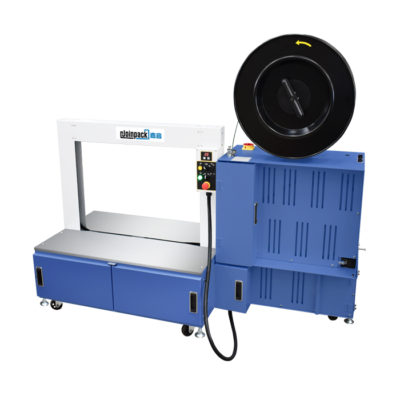

Bottom Seal Strapping With Low Table A-93L

Product Description

Ideal for heavy, bulky package. Lower table height allows operator to work with heavy objects efficiently. Various arch size combination and workability of different strapwidths between 9 ~ 15 mm. Tension range between 15-70 KGs. Available to equip with various unique options to perform advanced functions.

Features
  • 8 digit counter
  • Proximity cam switch
  • Instant heating system
  • Weld cooling time adjustable
  • Digital regulator in PCB which LED shows I/O status
Options
  • Looping ejector
  • Auto loading system
Bottom Seal Strapping With Low Table A-93L
Specification
Speed (straps / min) 24
Strap Width (mm) 9,12,15 specified
Tension Range 15~70kgs
Standard Arch (W x H mm) 850 x 600
Motor AC
Sealing Method Heating element
Table Height (mm) 440
Power Supply 110/220/230/240V, 50/60Hz,1PH 220/230/380/415/440V,50/60Hz, 3PH
Power Consumption (kw) 1.0
Layout Dimension (L x W x Hmm) (50%,100%,150%,200%) 1925 x 705 x 1480 (50%,100%,150%,200%)
*Specification subject to change without notice
